MFG Part Number 1264.00

OL4503

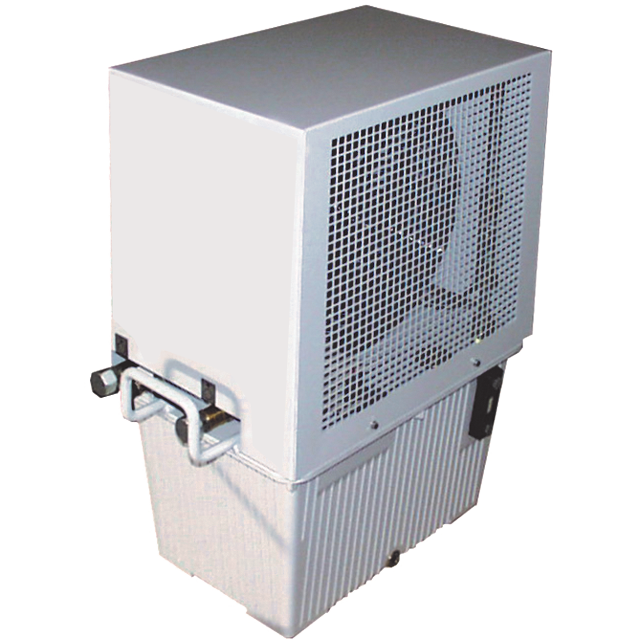

WL Series Liquid Cooling System

Oil cooled systems OL4503 is designed to circulate transformer oil and are used in applications where the temperature at the heat source exceeds the operational temperature limit of water?based coolants, or when special insulating properties are required within the coolant loop. The OL Series is a recirculating liquid to air heat exchanger that offers dependable, compact performance by removing large amounts of heat from a liquid circuit. The coolant pump to assure maximum flow rate. The coolant is recirculated using a high-pressure pump to assure maximum flow rate. Heat from coolant is absorbed by a heat exchanger and dissipated into the ambient environment using brand name fan.

Technical Specifications

Performance
Nominal Cooling Capacity
4,500 W
Nominal Operating Flowrate (60 Hz)
22.0 L/min @ 3.5 Bar
Nominal Operating Flowrate (50 Hz)
22.0 L/min @ 3.5 Bar
Operation
Coolant
Shell Diala S3-ZXIG
Operating Temperature
-10°C to 40°C
Storage temperature range (w/o coolant)
-25°C to 70°C
Humidity range
20% to 90%
Storage Humidity range
5% to 95%, non-condensing
Input Voltage
230 VAC
Frequency
50/60 Hz
Current
< 4.6 Amps
Flow Switch Open
≤ 14 L/min
Maximum Forward Pressure
9 Bar

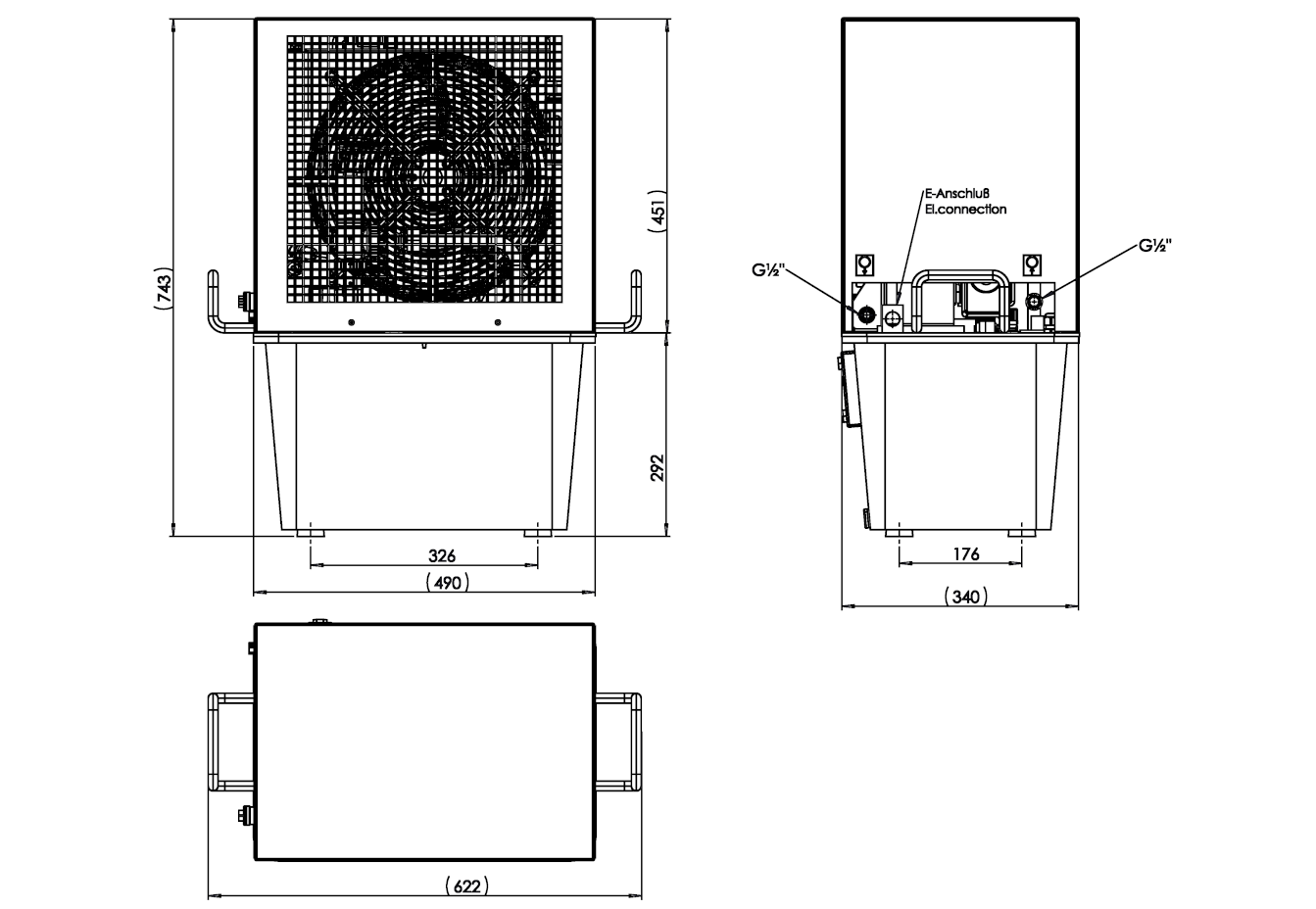

Physical
Height
750 mm
Length
650 mm
Width
350 mm
Weight
49.6 kg
Coolant Capacity
23 Liters
Oil Fitting
G 1/2” Female
