MFG Part Number 387010179

VRC4500-A1-20-BV2

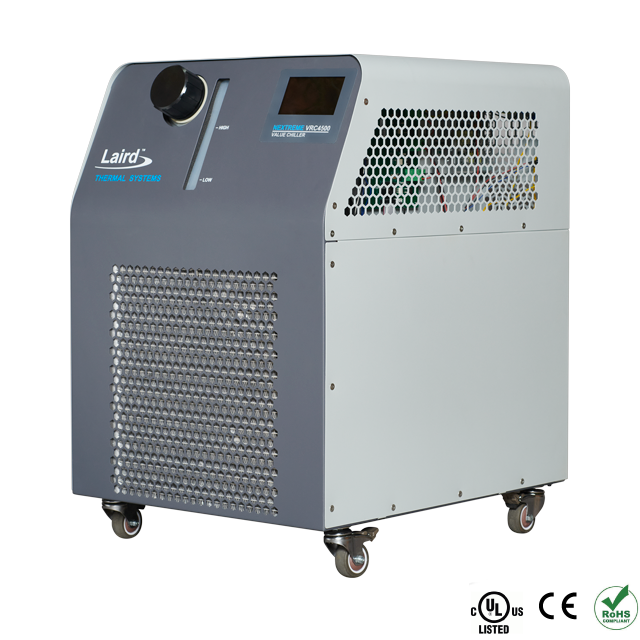

Nextreme™ Value Chiller

The Nextreme™ Value Chiller offers OEMs a cost-effective and reliable thermal management solution that keeps sensitive electronics in industrial and analytical equipment at the optimum temperature. Based on the Nextreme Performance Chiller Series design, the Value line offers the same ease of use, low maintenance features and high coefficient of performance (COP) as the performance chiller but at a lower cost to provide a more competitive pricing of an OEM bundled solution. Most importantly, the Value Chiller can be configured to meet unique application requirements. By using environmentally friendly R513A refrigerant, Nextreme Chillers achieve similar performance with half the Global Warming Potential (GWP) compared to traditional hydrofluorocarbon (HFC) refrigerants. Units run on universal input 230V, 50/60Hz, which means that they can operate anywhere in the world.

Features

  • Economical Cooling Solution
  • Reliable Performance
  • Environmentally Friendly
  • User-Friendly
  • Application Specific Configurations

Technical Specifications

Performance
Nominal Cooling Capacity1
4,850 W
Setpoint Range
5°C to 40°C
Temperature Stability
±0.5°C
Nominal Operating Flowrate (60 Hz)
17.4 L/min @ 5.0 Bar
Nominal Operating Flowrate (50 Hz)
14.4 L/min @ 5.0 Bar
Refrigerant
R 513A
Operation
Coolant
Water or Water/Glycol
Operating Temperature2
15°C to 40°C
Storage temperature range (w/o coolant)
-25°C to 70°C
Humidity range
30% to 80%
Storage Humidity range
5% to 95%, non-condensing
Altitude
< 2,000 meters
Input Voltage
230 VAC
Frequency
50/60 Hz
Current
< 13.2 Amps
Maximum Forward Pressure
6.5 Bar
Compliance
ANSI / UL / CSA / IEC EN 61010-1 Edition 3

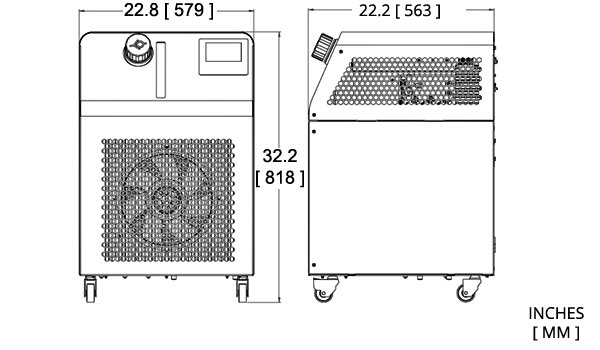

Physical
Height
818 mm
Length
563 mm
Width
579 mm
Weight
74 kg
Coolant Capacity
5 Liters
Couplings
1/2 in NPT

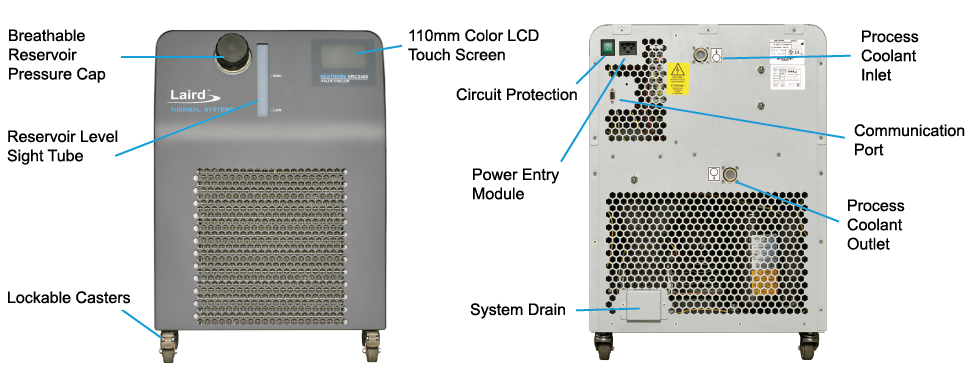

Standard Features

Color Touch Screen Display
Simple user interface and detailed communication of system status without the need for alarm codes or symbols.
Semi-Closed Fluid System
Sealed fluid system with breathable reservoir cap (similar to an automobile). This prevents evaporative loses, introduction of bacteria, and the need for components to prevent fluid from draining back into the system when installed below the application.
Optical Fluid Level Switch
Fluid level sensing with no moving parts.
RS-232 Communications
Complete control integration of chiller into higher level assembly control system.


Cooling Power Operating Points

Select Graph

100% Water / 60Hz / 20°C Ambient Air
Cooling Power (Qc) = 4,850 Watts
Fluid Setpoint = 20 °C
Fluid ΔT @ 17.4 L/min = 4.0 °C

100% Water / 60Hz / 30°C Ambient Air
Cooling Power (Qc) = 4,300 Watts
Fluid Setpoint = 20 °C
Fluid ΔT @ 17.4 L/min = 3.5 °C

100% Water / 50Hz / 20°C Ambient Air
Cooling Power (Qc) = 4,200 Watts
Fluid Setpoint = 20 °C
Fluid ΔT @ 14.4 L/min = 4.2 °C

100% Water / 50Hz / 30°C Ambient Air
Cooling Power (Qc) = 3,700 Watts
Fluid Setpoint = 20 °C
Fluid ΔT @ 14.4 L/min = 3.7 °C


Notes

  1.  Nominal capacity rating is given at a 20°C setpoint, 20°C ambient temperature, sea level, and 60Hz operation
  2.  For ambient conditions outside this range, please contact Laird Thermal Systems.
