MFG Part Number 387008347

EFC2400-A2-20-BT1

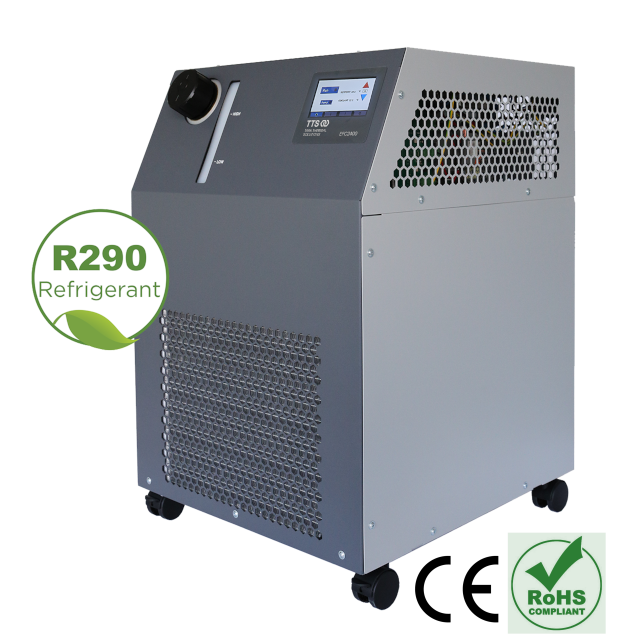

Nextreme™ Eco-Friendly Chiller

The Nextreme™ Eco-Friendly Chiller offers all users a cost-effective and reliable thermal management solution that is compliant with foreseeable future regulations with regards to refrigerant use. Part of the Nextreme family of chiller products, the EFC line offers the same ease of use, low maintenance features that makes it ideal for cooling sensitive electronics in industrial and analytical equipment. By using natural R290 refrigerant, the EFC Chillers achieve similar performance with a near-zero Global Warming Potential (GWP) when compared to traditional hydrofluorocarbon (HFC) refrigerants. The product also uses a variable speed compressor to maintain a high coefficient of performance (COP) and reduce system noise during partial load operation. For OEMs, the Eco-Friendly Chiller can be configured to meet unique application requirements. Units run on universal input of 200-240V, 50/60Hz, which means that they can operate anywhere in the world.

Features

  • Reliable Performance
  • Environmentally Friendly
  • Quick Start Guide User Friendly
  • Economical Cooling Solution

Technical Specifications

Performance
Nominal Cooling Capacity1
2,350 W
Setpoint Range
-10°C to 40°C
Temperature Stability
±0.1°C
Nominal Operating Flowrate (60 Hz)
12.0 L/min @ 2.6 Bar
Nominal Operating Flowrate (50 Hz)
12.0 L/min @ 1.4 Bar
Refrigerant
R 290
Operation
Coolant
Water or Water/Glycol
Operating Temperature2
10°C to 40°C
Storage temperature range (w/o coolant)
-20°C to 70°C
Humidity range
30% to 80%
Storage Humidity range
5% to 95%, non-condensing
Altitude
< 2,000 meters
Input Voltage
230 VAC
Frequency
50/60 Hz
Current
< 8.6 Amps
Maximum Forward Pressure
3.9 Bar
Compliance
ANSI / CSA / IEC EN 61010-1 Edition 3

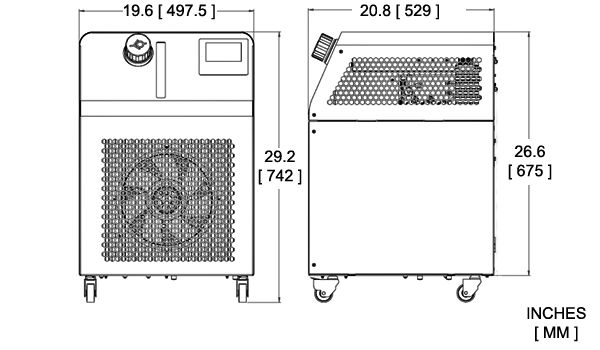

Physical
Height
742 mm
Length
529 mm
Width
498 mm
Weight
54.5 kg
Coolant Capacity
5 Liters
Couplings
1/2 in NPT

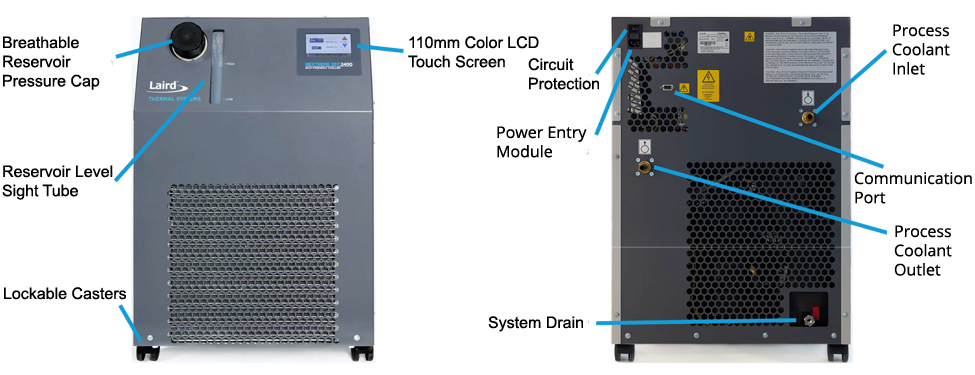

Standard Features

Color Touch Screen Display
Simple user interface and detailed communication of system status without the need for alarm codes or symbols.
Semi-Closed Fluid System
Sealed fluid system with breathable reservoir cap (similar to an automobile). This prevents evaporative loses, introduction of bacteria, and the need for components to prevent fluid from draining back into the system when installed below the application.
Optical Fluid Level Switch
Fluid level sensing with no moving parts.
RS-232 Communications
Complete control integration of chiller into higher level assembly control system.

Accessory Kits

Feature
Kit Part Number
Description
Flow Control Valve and Flow Sensing Kit
387004277
Externally installed valve for reducing the overall flow to the application. Full flow continues through the chiller to maintain high heat transfer rates and temperature stability. Flow meter for measuring coolant flow rate. Installed external to the chiller with both a local display and connectivity to chiller LCD display.
Water Filter Kit
387004279
Hot swappable, 5-micron water filter for filtering particulates from the coolant circuit.

Cord Options

These power cords have been tested and validated on Nextreme devices.

Power cord is not supplied with the unit and must be ordered separately.

MFG Part Number
Plug Type
Standard
Style
Cable
Length
Rating
Color
Connector
Order
387005324
Universal
None
Flying Leads
2.0 m
250VAC, 16A* / 20A**
Black
C19


Cooling Power Operating Points

Select Graph

100% Water / 20°C Ambient Air
Cooling Power (Qc) = 2,350 Watts
Fluid Setpoint = 20 °C
Fluid ΔT @ 12.0 L/min = 2.8 °C

100% Water / 30°C Ambient Air
Cooling Power (Qc) = 2,050 Watts
Fluid Setpoint = 20 °C
Fluid ΔT @ 12.0 L/min = 2.5 °C

40% Glycol / 20°C Ambient Air
Cooling Power (Qc) = 2,100 Watts
Fluid Setpoint = 20 °C
Fluid ΔT @ 12.0 L/min = 2.5 °C

40% Glycol / 30°C Ambient Air
Cooling Power (Qc) = 1,800 Watts
Fluid Setpoint = 20 °C
Fluid ΔT @ 12.0 L/min = 2.2 °C


Notes

  1.  Nominal capacity rating is given at a 20°C (68°F) setpoint, 20°C (68°F) ambient temperature, sea level, and 60Hz operation.
  2.  For ambient conditions outside this range, please contact Laird Thermal Systems.
