MFG Part Number 385755-001

MRC300-DH2-DV

MRC Series Thermoelectric Cooler Assembly

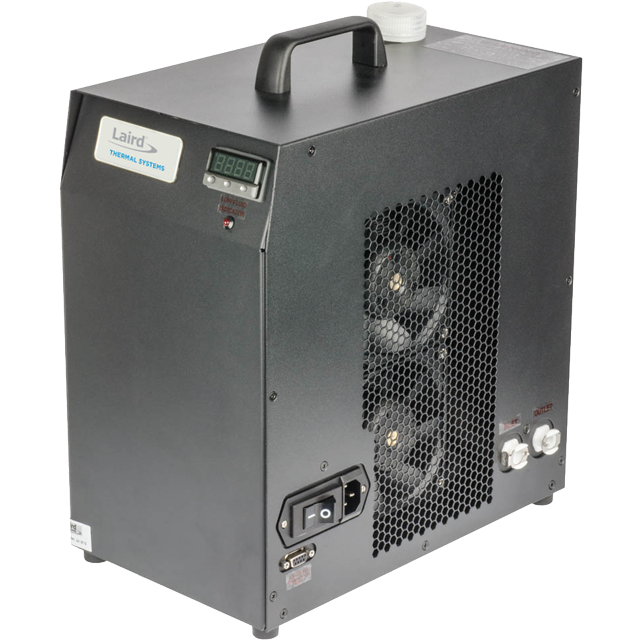

The MRC300-DH2-DV is a bench top re-circulating chiller that offers dependable, compact performance by controlling the temperature of a coolant in a liquid circuit. The coolant is re-circulated using a pump with high MTBF. Heat from coolant is absorbed by a heat exchanger and dissipated thru high density heat sinks equipped with brand name fans. The thermoelectric modules are custom designed to achieve long life operation. The unit is regulated with an easy to use digital temperature controller with push button interface. The controller can control temperature of liquid circuit at outlet from -12ºC to 40ºC. The unit is housed inside an a sheet metal casing, operates on universal input 115/230 VAC and is UL/IEC rated. Custom configurations are available, however, MOQ applies.

Features

  • Compact design
  • Precise temperature control
  • Reliable solid-state operation
  • Low noise
  • RoHS-compliant

Please Note: Actual application performance will vary from calculated values based on actual thermal design characteristics.

Specifications

Operating Environment Temperature Range
4.4°C to 45°C
Control Temperature Range (Water)
2°C to 40°C
Control Temperature Range (70/30 Water/Glycol)
-12°C to 40°C
Controller Accuracy
±0.16°C
Supply Voltage
115 VAC to 230 VAC
Current 115 VAC ( 230 VAC )
8.5 Amps ( 4.3 Amps )
Power Supply
507.0 Watts
Frequency
50/60 Hz
Performance Tolerance
10%
Fluid Capacity
450 mL
Maximum Flow Rate
3.3 L/min
Weight
13.60 kg

Electrical and Thermal Performance


Select Graph



Notes

1Use distilled water as coolant for control temperatures above 5°C
2To prevent freezing, use coolant with 70/30 distilled water/ethylene glycol
3Unit comes with a 115 VAC North American cord and a 230 VAC European cord
4UL Rating: UL61010 – 1/IEC61010-1

Any information furnished by Tark and its agents, whether in specifications, data sheets, product catalogues or otherwise, is believed to be (but is not warranted as being) accurate and reliable, is provided for information only and does not form part of any contract with Tark. All specifications are subject to change without notice. Tark assumes no responsibility and disclaims all liability for losses or damages resulting from use of or reliance on this information. All Tark products are sold subject to the Tark Terms and Conditions of sale (including Tark's limited warranty) in effect from time to time, a copy of which will be furnished upon request.

© Copyright 2019-2025 Tark Thermal Solutions, Inc. All rights reserved. Tark™, the Tark Ring Logo, and Tark Thermal Solutions™ are trademarks or registered trademarks of Tark Limited or its subsidiaries.

Revision: 00 Date: 06-08-2023
