SAA-110-24-22
SuperCool Series Thermoelectric Cooler Assembly
Note: This product is not recommended for new designs. Please use the recommended replacement.Please click the [Legacy Stock] button to see inventory available.
The recommended replacement is:
MFG Part Number: 387006706
Description: SAAX-115-24-22

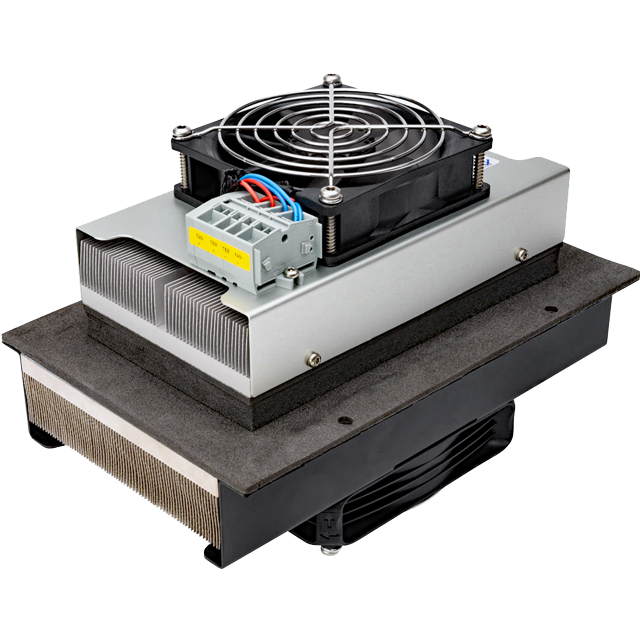

The SAA-110-24-22 Air-to-Air thermoelectric cooler assembly is a high performance thermoelectric based air conditioner. It is designed to temperature control small chambers used in medical diagnostics or sample storage compartments in analytical instrumentation. This unique, patented design offers a high performance hot side heat dissipation mechanism that convects heat more efficiently than conventional heat exchanger technologies. The design utilizes custom next-generation high-performance thermoelectric modules to maximize cooling capacity and premium grade fans to reduce noise. Moisture resistant insulation is used to keep condensation from penetrating into the thermoelectric module cavity. This unit operates at 24 VDC and is designed for indoor lab use environment. It has a maximum Qc of 110 Watts when ΔT = 0 and a maximum ΔT of 40 °C at Qc = 0.
US Patent US2016/0255746 A1
Features
- High performance
- Compact form factor
- Reliable solid-state operation
- RoHS-compliant
You can interact with the Performance Curves below to
estimate the cooling performance by entering the thermal and electrical operating conditions for your application.
Click the [Custom Datasheet] button to create a Customized PDF Datasheet.
Please Note: Actual application performance will vary from calculated values based on actual thermal design characteristics.
Specifications

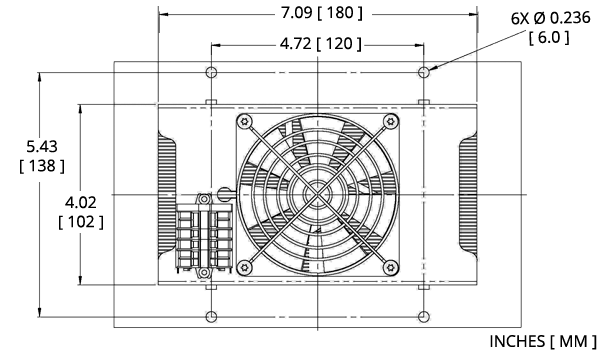

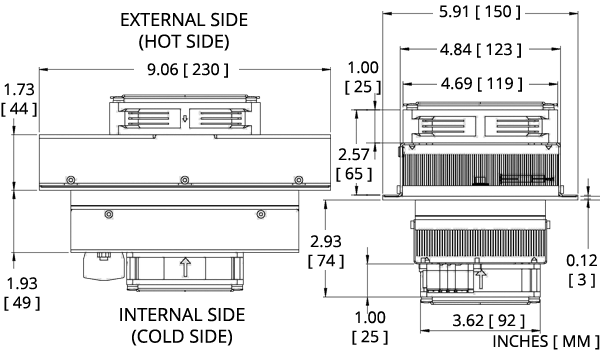

Mounting Hole Location

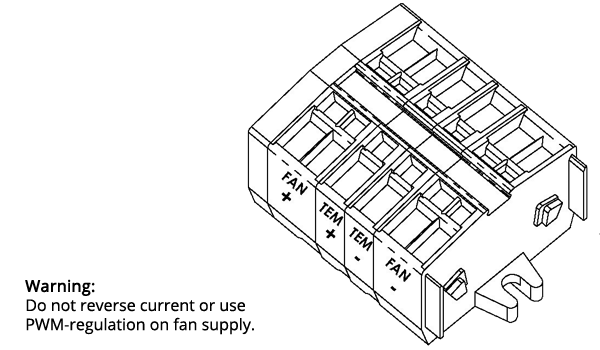

Wiring Schematic
Electrical and Thermal Performance
Use the sliders, input fields and [UPDATE] button below to enter your application's electrical and thermal conditions.
Use the Graph Y and X Axis buttons to display a variety of performance curves
and use the Voltage/Current slider to choose the electrical operating point to display performance.
Click [Custom Datasheet] button to save your results as a Customized PDF Datasheet.
Select Graph Y - Axis
Select Graph X - Axis
Cooling Power (Qc) = 24.74 Watts
TEM Voltage = 10.69 Volts
TEM Current = 2.02 Amps
TEM COP = 1.15
Power Supply = 33.6 Watts
Power Dissipated (Qh) = 58.32 Watts
Fan Voltage = 24.0 Volts
Fan Current = 1.5 Amps
Cooling Power (Qc) = 77.43 Watts
TEM Voltage = 30.09 Volts
TEM Current = 5.94 Amps
TEM COP = 0.43
Power Supply = 190.8 Watts
Power Dissipated (Qh) = 268.2 Watts
Fan Voltage = 24.0 Volts
Fan Current = 1.5 Amps
