PowerCycling PCX Series PCX5-16-F1-4040-TA-RT-W6
MFG Part Number: 387005675

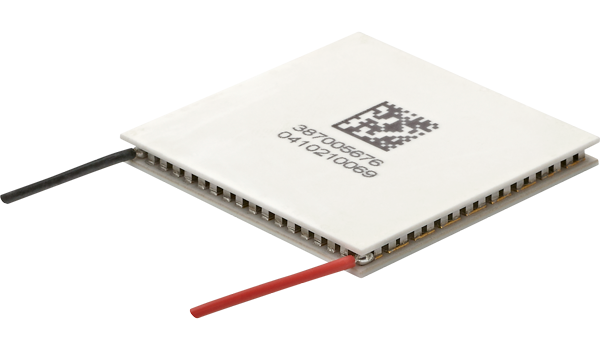

PowerCycling PCX Series Thermoelectric Cooler
The PCX5-16-F1-4040-TA-RT-W6 is a high-performance thermoelectric cooler designed for thermal cycling between multiple temperature set points and is ideal for applications in healthcare among others, where fast temperature changes are required. The thermoelectric module is specially constructed to reduce the amount of stress induced on the thermoelectric elements during operation. It has a maximum Qc of 54 Watts when ΔT = 0 and a maximum ΔT of 73.6 °C at Qc = 0.
Features
  • High thermal cycling capability
  • Precise temperature control
  • Solid-state operation
  • Boosted performance with next-gen material
  • RoHS-compliant

Electrical and Thermal Performance

For maximum performance, be sure to orient the CONTROL side of the TEC against the application to be managed and the AMBIENT side against the heat sink or other heat rejection method. The CONTROL side is always opposite the side with lead attachments. Lead attachment is a passive heat loss and less impactful if located on the side that attaches to the heat exchanger.


Tark Thermal Solutions
PowerCycling PCX Series PCX5-16-F1-4040-TA-RT-W6
MFG Part Number: 387005675

Tark Thermal Solutions
PowerCycling PCX Series PCX5-16-F1-4040-TA-RT-W6
MFG Part Number: 387005675
Specifications
Hot Side Temperature
27.0 °C
50.0 °C
80.0 °C
Qcmax (ΔT = 0)
54.0 Watts
58.1 Watts
62.3 Watts
ΔTmax (Qc = 0)
73.6°C
82.6°C
93.1°C
Imax (I @ ΔTmax)
4.9 Amps
4.8 Amps
4.7 Amps
Vmax (V @ ΔTmax)
18.8 Volts
20.9 Volts
23.6 Volts
Module Resistance
3.58 Ohms
4.03 Ohms
4.61 Ohms
Max Operating Temperature
120 °C


Weight
13.0 gram(s)



Finishing Options
Suffix
Thickness
Flatness / Parallelism
Hot Face
Cold Face
Lead Length
 TA
3.700 ±0.025 mm
0.146 ± 0.0010 in
0.025 mm / 0.025 mm
0.001 in / 0.001 in
Lapped
Lapped
152.4 mm
6.00 in

Sealing Options
Suffix
Sealant
Color
Temp Range
Description
 RT
RTV
Translucent or White
-60 to 204°C
Non-corrosive, silicone adhesive

Notes
  1.  Max operating temperature: 120°C
  2.  Do not exceed Imax or Vmax when operating module
  3.  Reference assembly guidelines for recommended installation
  4.  Solder tinning also available on metallized ceramics

Any information furnished by Tark Thermal Solutions and its agents, whether in specifications, data sheets, product catalogues or otherwise, is believed to be (but is not warranted as being) accurate and reliable, is provided for information only and does not form part of any contract with Tark Thermal Solutions. All specifications are subject to change without notice. Tark Thermal Solutions assumes no responsibility and disclaims all liability for losses or damages resulting from use of or reliance on this information. All Tark products are sold subject to the Tark Thermal Solutions Terms and Conditions of sale (including Tark’s limited warranty) in effect from time to time, a copy of which will be furnished upon request.

© Copyright 2025 Tark Thermal Solutions, Inc. All rights reserved.

Revision: 00 Date: 06-01-2022

Print Date: 05-11-2025
