MFG Part Number 387007105

HTX12-18-F2A-0606-11-W2.25

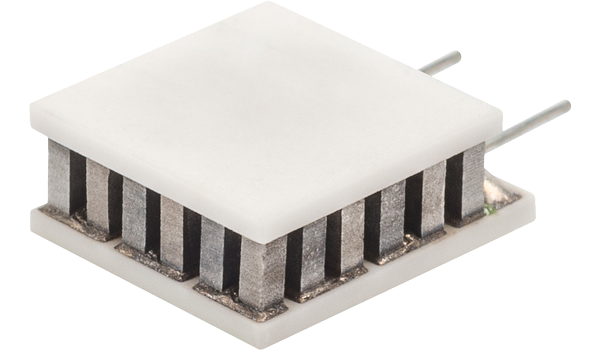

OptoTEC™ HTX Series Thermoelectric Cooler

The HTX12-18-F2A-0606-11-W2.25 is a high-performance, high-temperature, miniature thermoelectric cooler. The HTX12-18-F2A-0606-11-W2.25 is primarily used in applications to stabilize the temperature of sensitive optical components in the telecom and photonics industries. It has a maximum Qc of 1.6 Watts when ΔT = 0 and a maximum ΔT of 81.6 °C at Qc = 0.

Features

  • Miniature footprint
  • Precise temperature control
  • Reliable solid-state operation
  • Operates in high-temperature applications
  • No sound or vibration
  • RoHS-compliant

You can interact with the Performance Curves below to estimate the cooling performance by entering the thermal and electrical operating conditions for your application.
Click the [Custom Datasheet] button to create a Customized PDF Datasheet.
Please Note: Actual application performance will vary from calculated values based on actual thermal design characteristics.

Specifications

Hot Side Temperature
50.0 °C
85.0 °C
110.0 °C
Qcmax (ΔT = 0)
1.6 Watts
1.8 Watts
1.8 Watts
ΔTmax (Qc = 0)
81.6°C
93.4°C
99.9°C
Imax (I @ ΔTmax)
1.2 Amps
1.1 Amps
1.1 Amps
Vmax (V @ ΔTmax)
2.3 Volts
2.7 Volts
2.9 Volts
Module Resistance
1.82 Ohms
2.13 Ohms
2.33 Ohms
Max Operating Temperature
150 °C


Weight
1.0 gram(s)



Finishing Options

Suffix
Thickness
Flatness / Parallelism
Hot Face
Cold Face
Lead Length
 11
2.692 ±0.127 mm
0.106 ± 0.0050 in
0.051 mm / 0.051 mm
0.002 in / 0.002 in
Lapped
Lapped
50.8 mm
2.00 in

Sealing Options

Suffix
Sealant
Color
Temp Range
Description

None
No sealing specified

Electrical and Thermal Performance

For maximum performance, be sure to orient the CONTROL side of the TEC against the application to be managed and the AMBIENT side against the heat sink or other heat rejection method. The CONTROL side is always opposite the side with lead attachments. Lead attachment is a passive heat loss and less impactful if located on the side that attaches to the heat exchanger.

Use the sliders, input fields and [UPDATE] button below to enter your application's electrical and thermal conditions. Use the Graph Y and X Axis buttons to display a variety of performance curves and use the Voltage/Current slider to choose the electrical operating point to display performance.
Click the [Custom Datasheet] button to save your results as a Customized PDF Datasheet.

Select Graph Y - Axis

Select Graph X - Axis

Optimum COP
Cooling Power (Qc) = 0.15 Watts
Current = 0.13 Amps
Voltage = 0.28 Volts
Power Supply = 0.04 Watts
COP (Qc/Pin) = 4.02
Power Dissipated (Qh) = 0.18 Watts
Maximum Qc
Cooling Power (Qc) = 1.35 Watts
Current = 1.34 Amps
Voltage = 2.27 Volts
Power Supply = 3.04 Watts
COP (Qc/Pin) = 0.44
Power Dissipated (Qh) = 4.39 Watts

Electrical Operating Point

Imin: 0.1 A
Imax: 1.3 A

Vmin: 0.2 V
Vmax: 2.3 V
Voltage

Current
Cooling Power (Qc)

Power Supply (Pin)

COP (Qc/Pin)

Power Dissipated (Qh)

TEC Cold Temperature at Control (Tc)

TEC Hot Temperature at Ambient (Th)

Thermal Operating Conditions

Cooling
Heating
Ambient High Temperature
Control Temperature
Ambient Low Temperature
Cooling ΔT
Heating ΔT
Ambient Side
Thermal Resistance
Control Side
Thermal Resistance
Click to UPDATE performance after changing thermal operating conditions or switching between heating and cooling mode.

Notes

  1.  Max operating temperature: 150°C
  2.  Do not exceed Imax or Vmax when operating module
  3.  Reference assembly guidelines for recommended installation
  4.  Solder tinning also available on metallized ceramics

Any information furnished by Tark Thermal Solutions and its agents, whether in specifications, data sheets, product catalogues or otherwise, is believed to be (but is not warranted as being) accurate and reliable, is provided for information only and does not form part of any contract with Tark Thermal Solutions. All specifications are subject to change without notice. Tark Thermal Solutions assumes no responsibility and disclaims all liability for losses or damages resulting from use of or reliance on this information. All Tark products are sold subject to the Tark Thermal Solutions Terms and Conditions of sale (including Tark’s limited warranty) in effect from time to time, a copy of which will be furnished upon request.

© Copyright 2025 Tark Thermal Solutions, Inc. All rights reserved.

OptoTEC™ is a trademark of Tark Thermal Solutions, Inc. All other marks are owned by their respective owners.

Revision: 00 Date: 1-21-2025
Print Date: 05-07-2025
