PowerCycling PCX Series

Tested to withstand rigorous cycle testing based on latest PCR industry test protocol

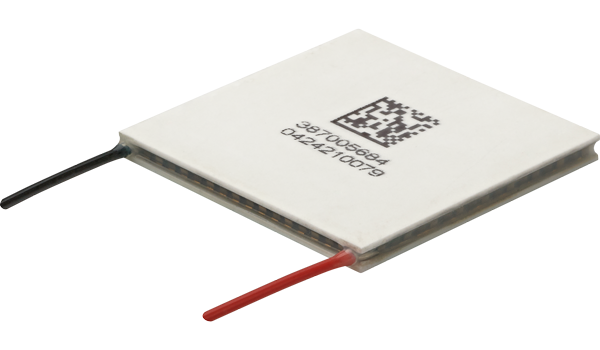

The PowerCycling PCX Series is a high-performance thermoelectric cooler that uses an enhanced module construction to provide long life operation in thermal cycling applications. It is ideal for molecular diagnostics where fast temperature ramp rates are required while maintaining precise temperature with minimal gradient. This product line has been qualified to withstand harsh thermal cycle testing based on latest PCR qualification standards without degradation to performance. PCX thermoelectric coolers are assembled with next generation thermoelectric materials to boost cooling performance over standard product offerings.

Read PowerCycling PCX Series Test Protocol

Features

  • High thermal cycling capability
  • Precise temperature control
  • Solid-state operation
  • Boosted performance with next-gen material
  • RoHS-compliant

Finishing Options *

  • TA - Lapped / Lapped
  • TB - Lapped / Lapped
  • 11 - Lapped / Lapped

Sealing Option *

  • RT - RTV

* If the thermoelectric cooler with your required finishing and sealing options is not available from the list below, use either the [Request Quote] button or [Contact Tech Support] button for ordering options.

PCX-DG Series

Advanced construction to survive in Harsh Cycling Environments at high heat flux densities

Tark Thermal Solution’s PowerCycling PCX-DG Series of high-reliability thermoelectric coolers (TECs) are engineered for semiconductor test sockets and other high heat-flux applications exposed to frequent, rapid temperature cycling. Its dual-interface construction uses compliant, thermally conductive bonds on both ceramic interfaces to accommodate differential thermal expansion and contraction, helping reduce mechanical stress during repeated heating and cooling.

PowerCycling PCX-DG, a new member of PCX family, with compliant, thermally conductive bonding layers at both ceramic-side interfaces of the thermoelectric module is engineered for higher current draw and high heat flux density applications like end-of-line (EOL) optical transceiver test heads, semiconductor test sockets and other systems exposed to frequent, rapid temperature reversals.

Check up to 3 TECs then click COMPARE to view a comparison datasheet

Square TECs

Used for Refrigeration and Thermal Cycling
Check up to 3 TECs then click COMPARE to view a comparison datasheet

Rectangle TECs

Used for Thermal Cycling
Check up to 3 TECs then click COMPARE to view a comparison datasheet
* Any information furnished by Tark Thermal Solutions and its agents is believed to be accurate and reliable. All specifications are subject to change without notice.
